The NEW V3600-UI Modem
A classy update to the classic modem

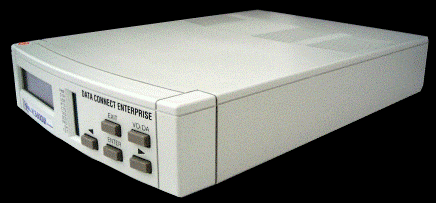

V3600UI-SA             Data Connect V3600 UI Universal International
V3600UI-DC            Data Connect V3600  UI DC

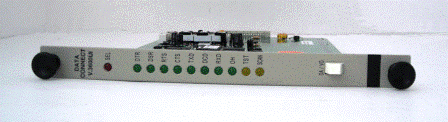

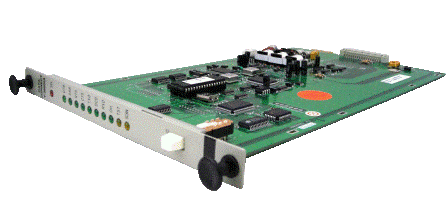

V3600UI-RM            Data Connect V3600  UI Rackmount
V3600UI-DualRM    Data Connect V3600 UI Dual Rackmount
RM16M27UI-AC      Data Connect 16-slot 19 AC Chassis
72005227
RM16M34UI-DC      Data Connect 16-slot 19 DC Chassis
72005234


The NEW V3600 Modem from Data Connect

DCE has been supplying V3600 modems from UDS, Motorola, and Telenetics for as long as anyone in the industry.  We now offer this classy update of the classic modem for our V3600 customers



The Data Connect V3600 UI is a series of high performance, synchronous and asynchronous, full-duplex, multi-standard standalone or rack-mounted modem. It is designed for use on 2-wire dial-up and 2/4- wire leased-line circuits.

The Data Connect V3600 UI is fully compliant with ITU-T V.34 recommendation as well as being compatible with ITU-T recommended V.32bis/V.32, V.22bis, V.23 and V.21 international standards while operating at 33600, 31200, 28800, 26400, 24000, 21600, 19200, 16800, 14400, 12000, 9600, 7200, 4800, 2400, 1200, and 300 bits per second.

An in-band secondary channel allows the user to monitor and control the remote site unit. The Data Connect V3600 series also offers auto callback and leased-line security checks in addition to the dial-up security checks.

The Data Connect V3600 UI is a series of high performance, synchronous and asynchronous, full-duplex, multi-standard standalone or rackmounted modem. It is designed for use on 2-wire dial-up and 2/4- wire leased-line circuits. The Data Connect V3600 is fully compliant with ITU-T V.34 recommendation as well as being compatible with ITU-T recommended V.32bis/V.32, V.22bis, V.23 and V.21 international standards while operating at 33600, 31200, 28800, 26400, 24000, 21600, 19200,16800, 14400, 12000, 9600, 7200, 4800, 2400, 1200, and 300 bits per second.

In V.34 mode the Data Connect V3600 UI provides full-duplex operation at up to 33.6Kbps on a 2/4-wire PSTN line with features like line probing, symbol rate and carrier frequency automatic selection. A range of performance enhancing techniques are available for V.34 mode, including adaptive precoding, adaptive pre-emphasis, nonlinear encoding (Warping), constellation expansion, multidimensional trellis coding, transmission power back-off (power drop), V.8 standard modem initialization and shell mapping.

An in-band secondary channel allows the user to monitor and control the remote site unit. The Data Connect V3600 series also offers auto callback and leased-line security checks in addition to the dialup security checks. The rack can accommodate up to 16 modem cards with 32 ports, control unit and single or dual redundant power unit. Dual redundant power supply meaning if one power does fail, the other one is capable of powering the entire rack.

Fully compatible with ITU-T V.34+/ V.34/ V.32bis/ V.32/V.26bis/ V.22bis/ V.22/ V.23/ V.21/ V.24/ V.28/ V.25bis/ V.54/V.52/ V.42/ V.42bis/ 4/ V.13/ V.8 and Bell 212A/103
19 rack accommodates up to 16 modem cards with hotswap and profile copy functions
Achieve throughput up to 115200bps
V.13 simulated carrier in half duplex
MNP4,V.42 error correction
MNP5 ,V.42bis data compression
Extended AT and ITU-T V.25bis command set
Leased line dial back-up and restore in manual or auto mode
Auto fallback and fall forward
Remote configuration via secondary channel
Front panel lock and password protect
Password & call back security
Diagnostic capabilities:
Analog loopback, digital loopback and remote, digital loopback (with pattern or not); BERT test pattern using 511
Auto or manual dialing/answer
Front panel configuration via rubber switches and LCD
Front panel key reset function
G3 FAX send/receive compatible with EIA-578 Class 1 FAX command (optional)



V3600UI-SA             Data Connect V3600 Universal International
V3600UI-DC            Data Connect V3600 DC
V3600UI-RM            Data Connect V3600 Rackmount
V3600UI-DualRM    Data Connect V3600 Dual Rackmount
RM16M27UI-AC      Data Connect 16-slot 19 AC Chassis
72005227
RM16M34UI-DC      Data Connect 16-slot 19 DC Chassis
72005234

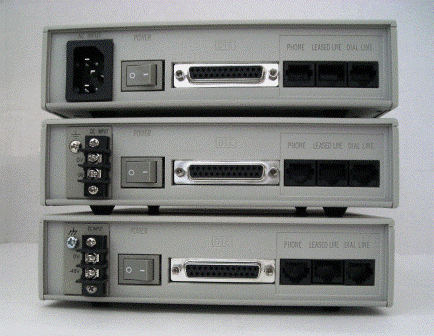

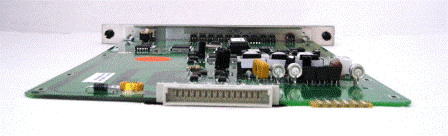

V3600UI SA Rear and V3600RM rear


DCE V3600 UI Manual
