Patton 2157R Ruggedized
4.6 Mbps Auto-Rate Ethernet Extender


The Patton 2157R extends Ethernet connections at distances up to 32,000 feet (10 km)
over existing copper infrastructure cabling
Industrial or Outdoor Applications

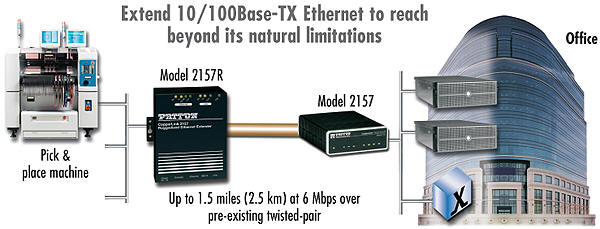

Works in pairs, or paired with 2157 (Indoors)

* Long distance network extension—Extension distances up to 32,000 feet (10 km) or 4.6 Mbps at 1.5 miles (2.5 km).

* Uses existing infrastructure—Utilizes installed voice-grade twisted pairs to eliminate the expense of fiber or Cat5e cabling.

* Plug and Play—No configuration or cable hassles during installation with auto-sensing 10/100, full or half duplex, and auto MDI-X.

* Auto-rate adaption—Ensures the highest rate possible for each extension distance.

* Flexible installation—Wall or DIN rail mountable

* Ruggedized—Operating temperature of -10 to 70°C or -40 to 85°C for 2157R/CC


The Patton 2157R simplifies network extension by utilizing pre-existing twisted pair infrastructure enabling twisted pair previously used for legacy systems such as TTL, RS232 and 422/485 to be used for extending or connecting Ethernet devices together. With a pair of 2157R’s or combined with a , a user can extend their network connections up to 32,000 ft (10 km). Reusing the already existing infrastructure for Ethernet Networking eliminates the cost of purchasing expensive fiber and Cat5E or greater cabling. Most important, it completely eliminates the hassle and sometimes overwhelming expense and downtime of the cable installations.

The 2157R was designed to operate in a rugged environment, with temperature ranges from -10 to 70°C, and the option for conformal coating protecting the device from condensing humidity, and operates at -40 to 85°C. The 2157R’s aluminum case design allows for users to conveniently mount them either on a wall or DIN.






Transmission Line Single twisted pair (pin 2 = ring; pin 3 = tip)
Protocol Transparent to higher layer protocols. Supports 802.1 Q VLAN tagged packet transmission
Line Rates Auto-Rate adaptive from 192 kbps to 4.6 Mbps
DTE Rates All 64k steps from 192 to 4608 kbps
Line Coding TC-PAM
LED Status Indicators WAN: Link, TD, RD, Ethernet: Link, 10/100, TD, RD, Power
Connectors RJ-11 on copper line side, RJ-45 for Ethernet connection, shrouded male IEC320 power connector
Power External 90–260 VAC, 50–60 Hz (Universal Input), 10 W. external 40–60 VDC, 10W (DC option)
Line Interface Transformer coupled, 1500 VAC isolation.
Compliance FCC Part 15, CE Mark per EMC directive 89/336/EEC and Low Voltage Directive 73/23/EEC, UL1950 UL and cUL listed (Rev A: Listing in process)
Humidity 5–95%, non-condensing; Conformal Coated: 85% condensing humidity from -10 to 35°C
Operating Temp. Standard: -10 to 70°C; Conformal Coated: -10 to 80°C
Altitude 0–15,000 ft (0–4,600 m)
Dimensions 7.3 x 6.6 x 1.62 in. (185 x 168 x 41 mm)
Weight 2.0 lbs (1.0 kg)

Patton 2157R Extension Distances Table

Line
Rate
No Noise
26g (0.4 mm)

24g (0.5 mm)
22g (0.6 mm)

20g (0.8 mm)

19g (0.9 mm)

kbps
miles
km
miles
km
miles
km
miles
km
miles
km
200
4.4
7.0
5.7
9.4
8.0
13.1
10.3
16.8
12.1
19.7
392
4.0
6.6
5.4
8.8
7.5
12.3
9.7
15.8
10.8
17.5
520
3.8
6.2
5.1
8.3
7.1
11.6
9.2
14.9
9.7
15.8
776
3.5
5.6
4.6
7.5
6.0
9.8
7.8
12.7
8.8
14.3
1160
3.0
4.9
4.0
6.4
5.2
8.4
6.7
11.0
7.5
12.3
1544
2.8
4.6
3.7
6.1
4.9
7.9
6.4
10.3
6.7
11.0
2056
2.5
4.0
3.3
5.3
4.2
6.9
5.6
9.0
5.9
9.6
2312
2.3
3.8
3.1
5.0
4.0
6.6
5.3
8.6
5.6
9.1
2696
2.3
3.7
3.0
5.0
4.0
6.4
5.2
8.4
5.5
8.9
3080
2.2
3.6
3.0
4.8
3.9
6.3
5.0
8.2
5.4
8.7
3464
2.1
3.4
2.7
4.5
3.6
5.8
4.7
7.6
4.9
8.0
3848
1.9
3.1
2.5
4.1
3.3
5.3
4.3
7.0
4.5
7.4
4232
1.7
2.8
2.3
3.7
2.9
4.8
3.9
6.3
4.1
6.6
4616
1.5
2.5
2.0
3.3
2.6
4.2
3.4
5.5
3.6
5.9
