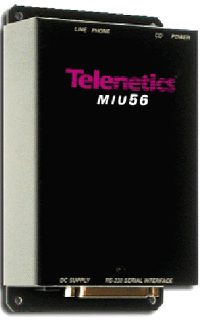

MIU56 - V.90 Modem
Data Connect only offers and stocks like new and refurbished Telenetics product

ITU-T V.90 56,000bps modem for industrial, utility automation applications -


The MIU56 Industrial Modem is a V.90 with additional features and extra versatility that make it ideal for industrial local or remote unattended  operation. Special attention has been paid to ensuring that the modem restarts reliably in the event of power interruption or internal malfunction. The modem incorporates the latest generation digital signal processor (DSP) that enables new features to be soft-up-loadable when they become available. The new MIU56 provides data transfer rates of up to 56 Kbps. Its robust standalone case construction provides the most reliable operation in the most varied of conditions. The MIU56 is intended for industrial, utility automation and OEM markets where the application requires a modem to deal with the harsh and varied environmental conditions.

  • 2-wire Dial & Lease Line

  • 56K Dial/33.6K LL

  • Password Security

  • Remote Configuration

  • Stand Alone

  • Approvable Worldwide

  • Universal Power Supply

  • Voice Alert Functions

  • Temperature 10 to +60 C

  • Panel or Wall Mount Holes

  • Extended AT Command Set

  • DC power with sleep mode





Specifications

ITU-T V.90 56,000bps

ITU-T V.34 33,600bps

ITU-T V.32bis 14,400bps

ITU-T V.32 9600bps

ITU-T V.23 1200/75bps

ITU-T V.22bis 2400bps

ITU-T V.21 300bps

Synchronous/Asynchronous Data Yes

ITU-T V.42 Error Correction MNP 2-4, MNP 10EC

ITU-T V.42bis Data Compression MNP 5

Maximum Throughput 230, 400bps

Fax Send/Receive Speeds 14,400bps
(Class 1 & 2 )

Voice Capable Yes

DES encryption Yes

Dial Back Yes



Power Supply: 90 to 240 VAC or direct 6 to 14.5 VDC

Temperature: -35 to +70 C

Humidity: 0 - 95% non condensing

Housing: Metal Casing

Dimensions: 50 depth x 88 width x 35 height (mm)

Network Connections: PSTN via RJ11

2 wire leased line via RJ11

Handset Connection: RJ11

Data Connection: RS232/V.24 via DB25F connector

Data Interface: RS232 via DB25F

User Configurable Hardware Options: 1. Reset Factory Defaults

2. Leased Line Enable

3. Leased Line Answer/Originate

4. Async/Sync Leased Line

5,6,7 (User Configurable)

User Security Database: 20 users
